Add a Schedule

To add a schedule to a system, complete the following steps.

1. Go to Customers.

2. Select the system name.

3. In the menu, go to Schedules.

4. Select the Add icon.

5. Enter a schedule name and number.

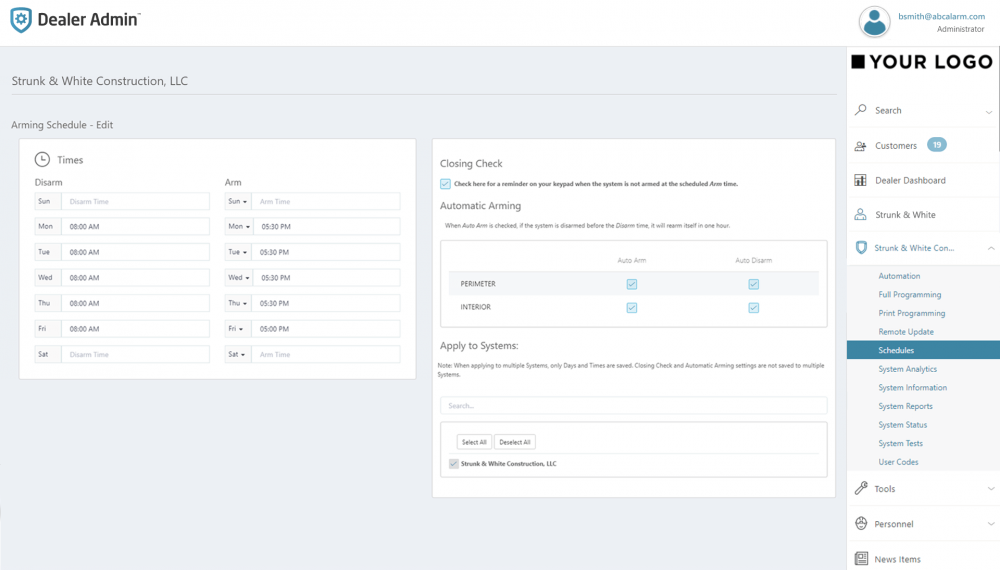

6. In Times, enter the begin and end times for the schedule in the appropriate day slots in either 24-hour or 12-hour format. For 12-hour format, enter the time with either AM or PM.

7. To set specific times for holiday schedules, enter them in the holiday slots (Hol A, Hol B, or Hol C).

   • Holiday schedules can only be created from VirtualKeypad.com or the panel User Menu. To create a holiday schedule, finish configuration in Dealer Admin, then Log In as a Customer.

8. Choose Areas, Outputs, Favorites, and Doors for the schedule, if applicable.

9. In Copy to Systems, select the schedule types to send to the system.

10. Select systems to be affected by the schedule.

11. Select Send Changes to System.
